Haibike Allmtn 1 i630wh Electric Full Suspension MTB - Anthracite




Our entry-level AllMtn model opens up an enormous range of possibilities: with 160mm travel and a wheel size mix of 29" at the front and 27.5" at the rear, you and the AllMtn 1 will manoeuvre over any terrain with ease and enjoy the first-class performance even on challenging descents. The powerful Yamaha PW-ST motor powers you up every hill with a smooth, natural feel to the ride.

Key Features:
  • DRIVE UNIT: Yamaha PW-ST System, 70Nm, 25km/h
  • BATTERY: InTube 630Wh
  • FORK: RockShox 35 Silver, Travel: 160mm
  • MIXED WHEEL SIZES: 27.5" / 29"
Bike Despatch
Technical Information

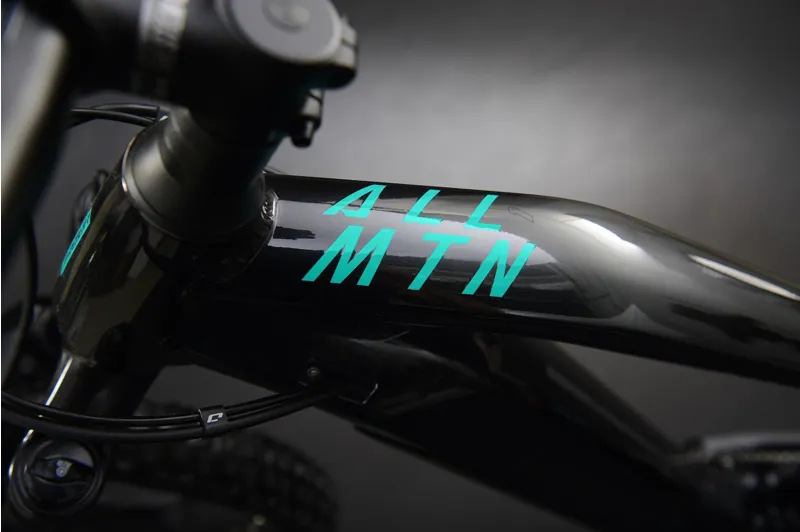

  • Frame: Haibike, AllMtn Yamaha i630, Aluminium
  • Fork: RockShox, 35 Silver, Air, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • Rear Shock: SR Suntour, Edge LO-R8, Air, Trunnion Mount M8x25
  • Crank Arm: Haibike Components, The Crank +, Aluminium
  • Front Brake: Tektro, Orion M745 , 203 mm, 4-piston disc brake
  • Rear Brake: Tektro, Orion M745 , 180 mm, 4-piston disc brake
  • Front Rim: Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
  • Rear Rim: Rodi, Tryp 35, Aluminium, with eyelets, hollow rim
  • Clamping Ring: Internal hexagon, 34.9 mm
  • Rear Derailleur: Shimano, Deore M5100
  • Shifter: Shimano, Deore M5100, Trigger switch, 11 Speed
  • Bottom Bracket: Integrated into the motor
  • Cassette: Shimano, M5100, 11 - 51 teeth
  • Chain: KMC, X11e
  • Chainring: Steel, 38 teeth
  • Brake Levers: Tektro, Orion M745, Aluminium
  • Front Tyre: Continental, Trail King, 60-622, 29" x 2.4"
  • Rear Tyre: Continental, Trail King, 65-584, 27.5" x 2.6"
  • Front Hub: Haibike Components, TheHub ++, 6-bolt standard
  • Rear Hub: Haibike Components, TheHub ++ Steckachse 12x148, 6-bolt standard
  • Spokes: Sapim, Leader, Black
  • Handlebar: Haibike Components, TheBar +++ Gravity, 780 mm
  • Grips: Haibike, MTB grips
  • Stem: Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 °
  • Headset: Feimin, A-Head Tapered, Ball bearing

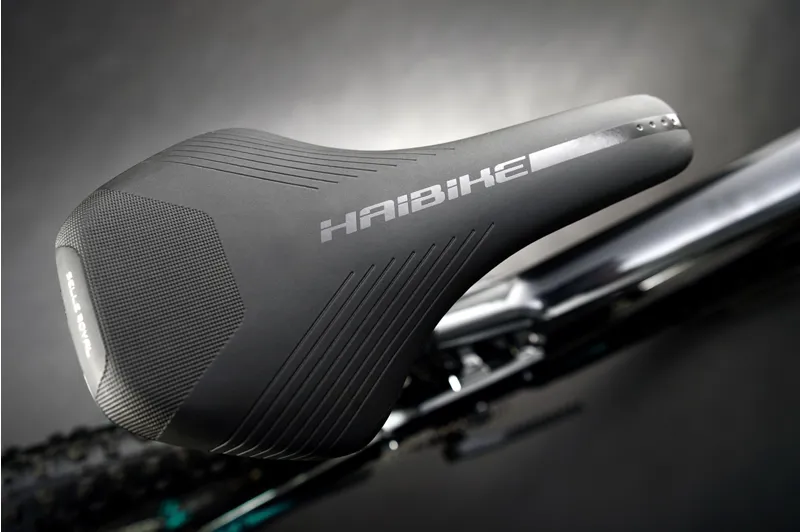

  • Saddle: Selle Royal Vivo 1216HRN
  • Seatpost: Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
  • Pedals: Freeridepedal, Aluminium, with Reflector

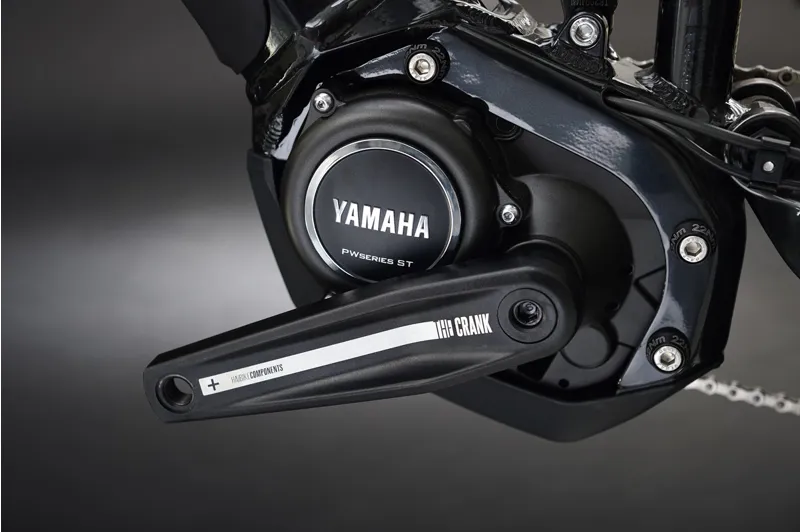

  • Motor: Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
  • Display: Yamaha, Side Switch, 1.7" LCD, 7 functions
  • Battery: InTube, 630 Wh

Please Note – Whilst we endeavour to provide up-to-date information, manufacturer specifications and design can change without prior notice.
Sizing Information
5’4″ – 5’8″42cm
5’7″ – 5’10”44cm
5’9″ – 6’1″47cm
5’11” – 6’2″50cm
