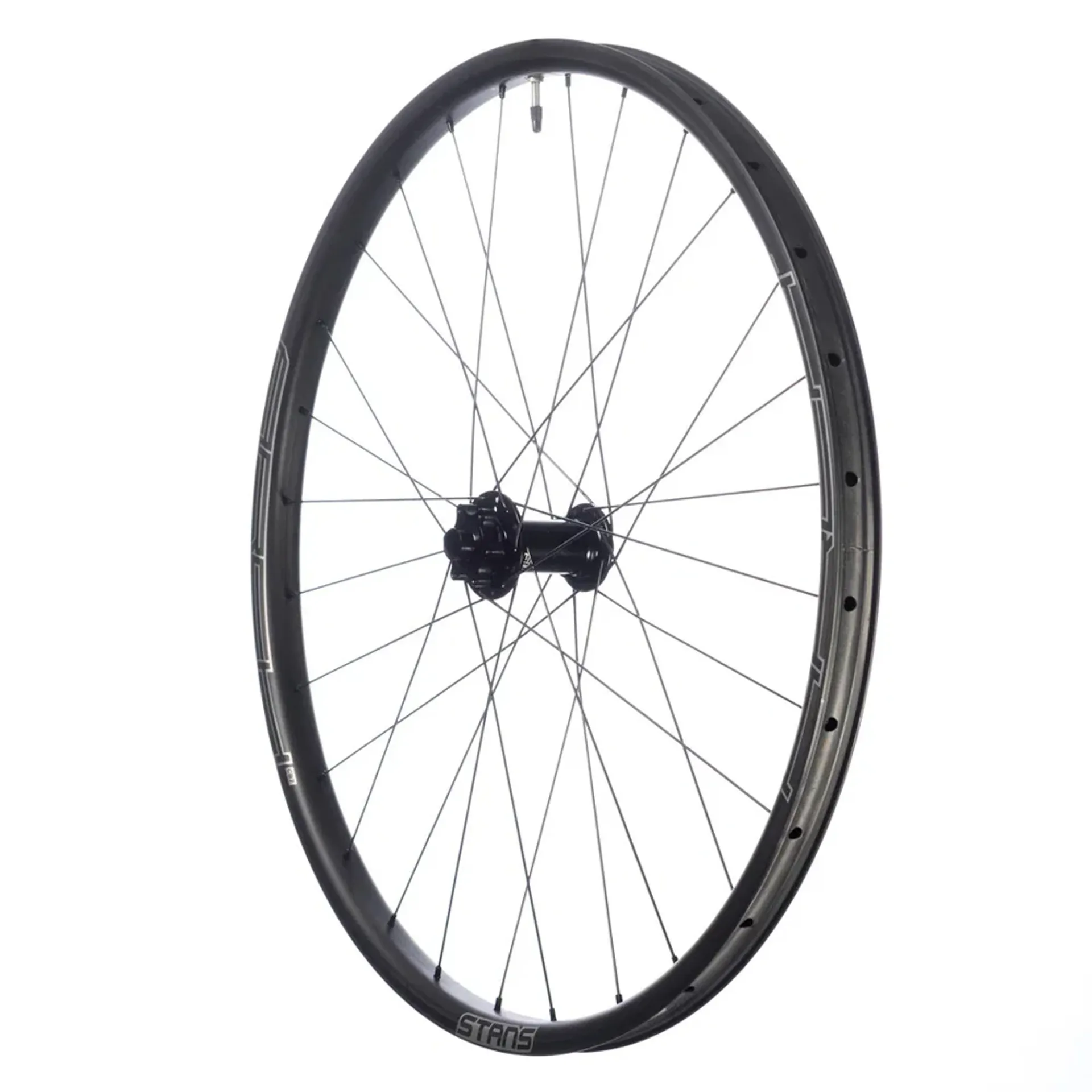

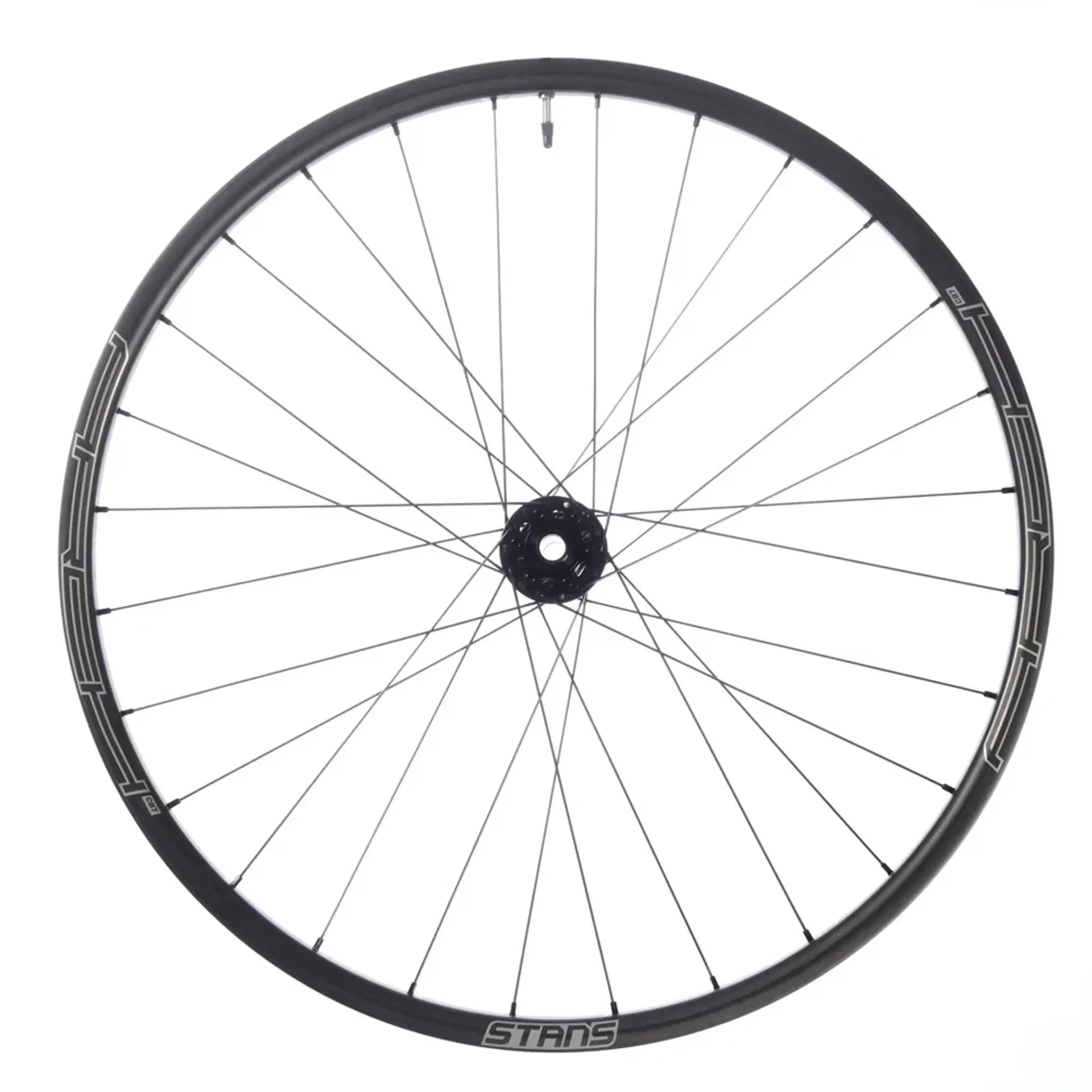

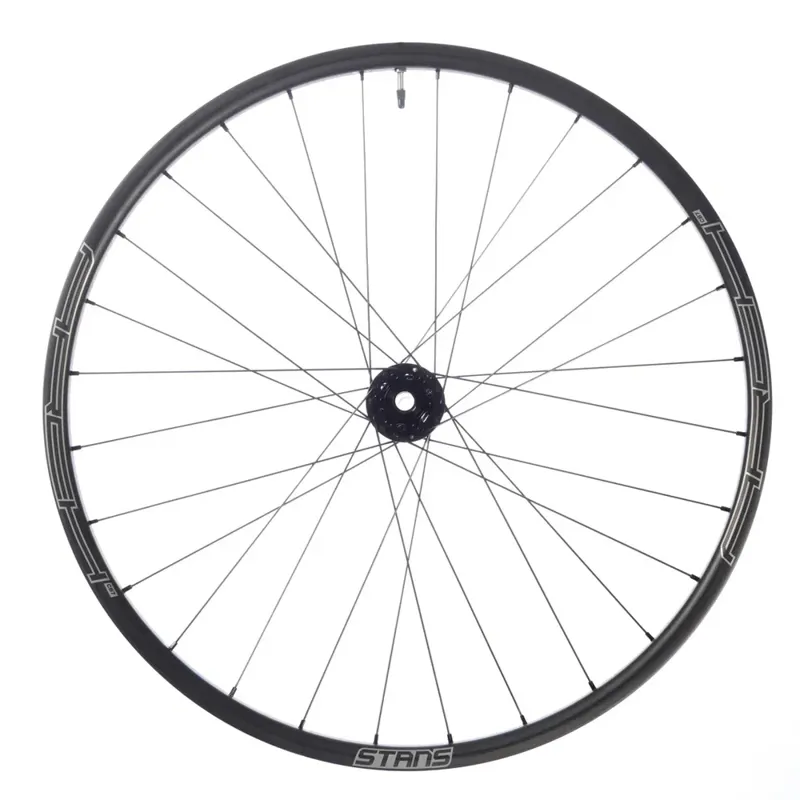

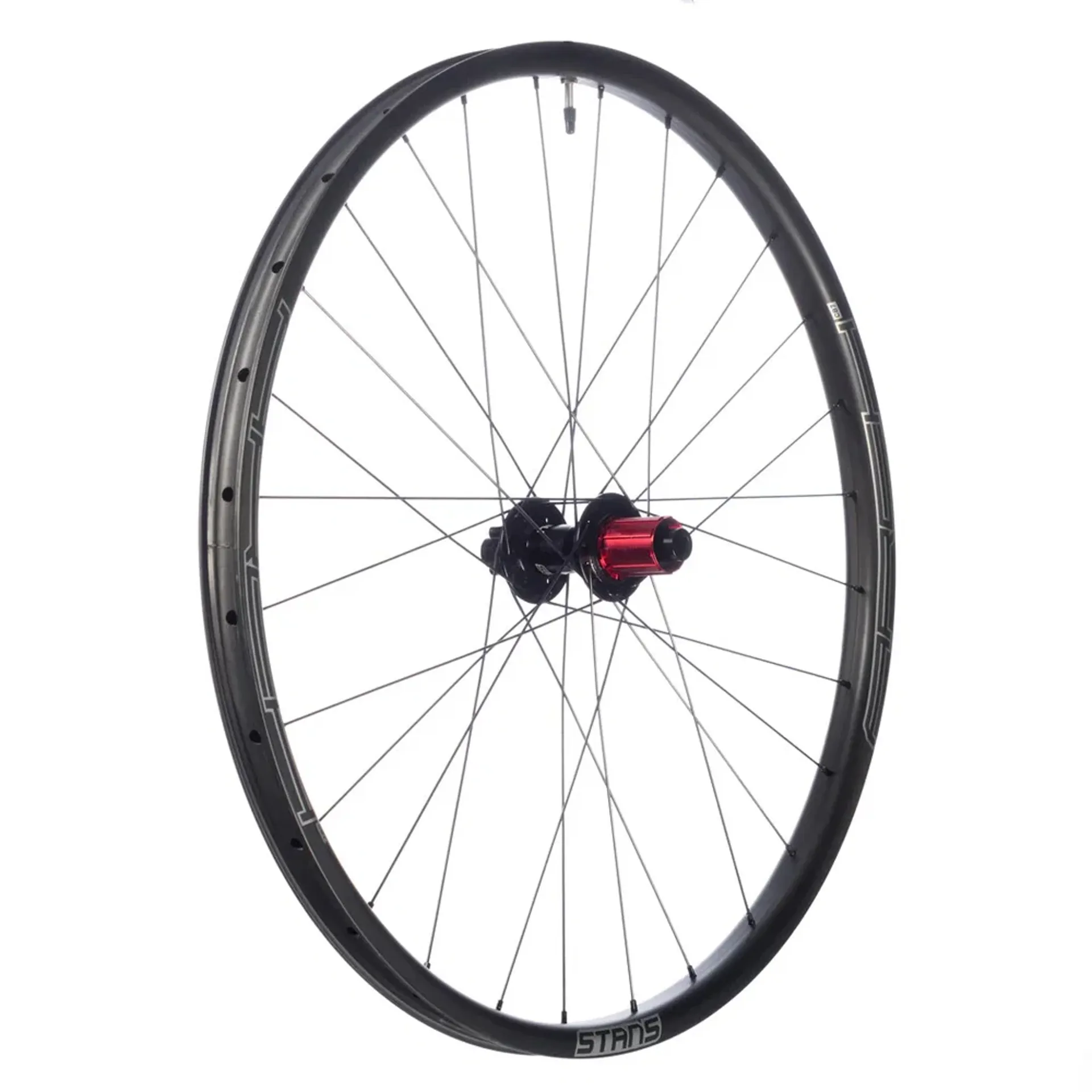

Stans Arch CB7 XDR 27.5 inch Tubeless MTB Rear Wheel - Black

Season:Core Range

Brand:Stans

Code:NT-SWAC70012

The Arch CB7 makes the trail feel smoother, faster and more controlled. It soaks up hits that chew speed. It holds your tyre shape so corners feel planted. And it responds instantly when you put power down. This rim exists so you spend less time fussing and more time riding the line.

Why the shape matters:

The Arch CB7 balances tyre stability with natural handling. The low‑profile sidewalls keep tyre shape correct. Your 2.35" (and 2.25–2.50") tyres still turn and hook up like they should. The rim is wide enough to support the tyre and narrow enough to keep sharp cornering feel.

Feel the difference - RiACT impact control:

We spent years refining the layup and profile so the rim moves where it helps. RiACT lets the rim deflect up to 10mm radially to absorb hits. The result is fewer puncture threats, less energy lost to impacts, and a smoother, faster roll without giving up lateral stiffness.

Tubeless that just works:

Arch CB7 uses Stan’s patented Bead Socket Technology. It’s the original tubeless rim shape that makes seating and sealing easier. With the included tape and presta valves, tubeless setup is straightforward and reliable — the kind of system you trust before a big ride.

Hubs and spokes built for real use:

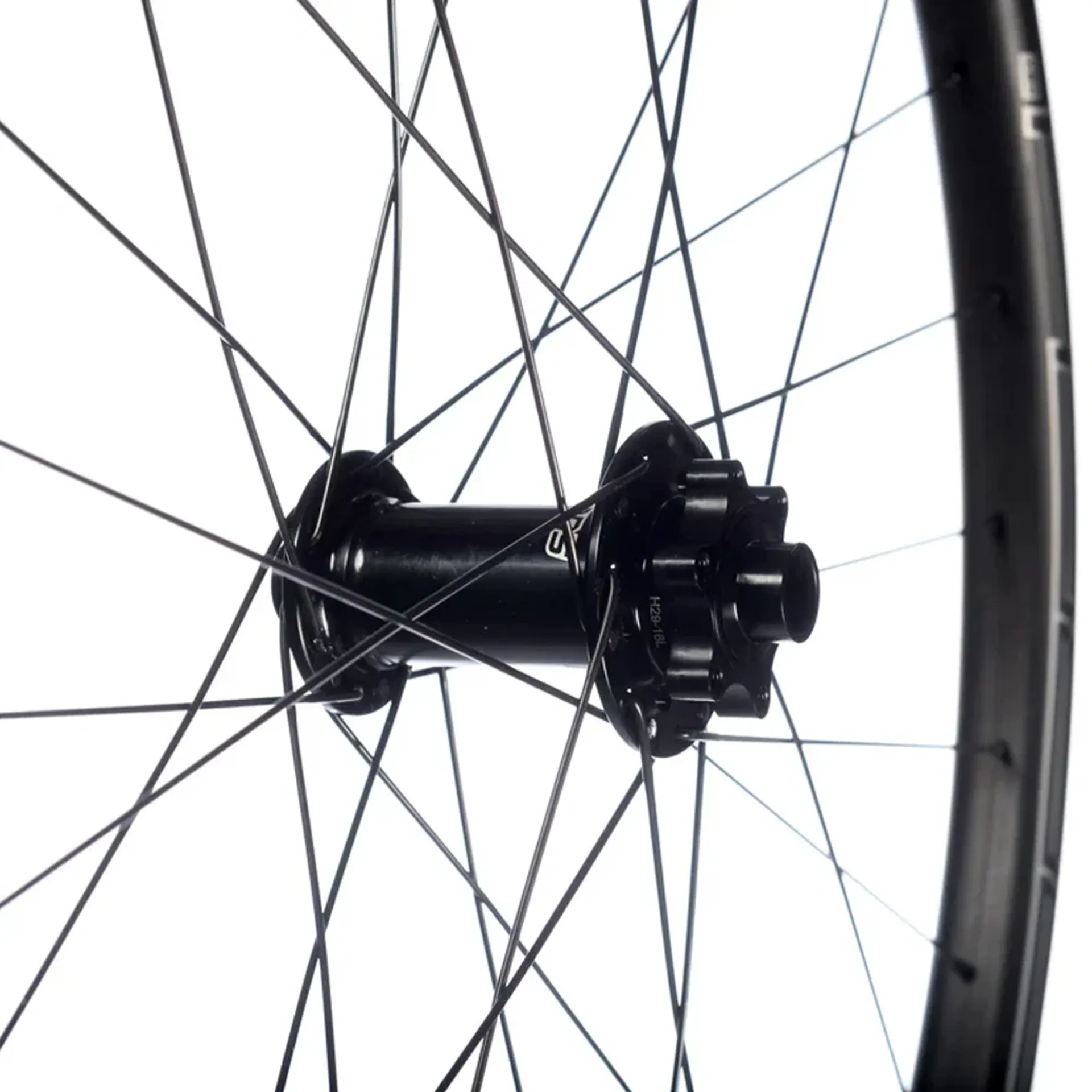

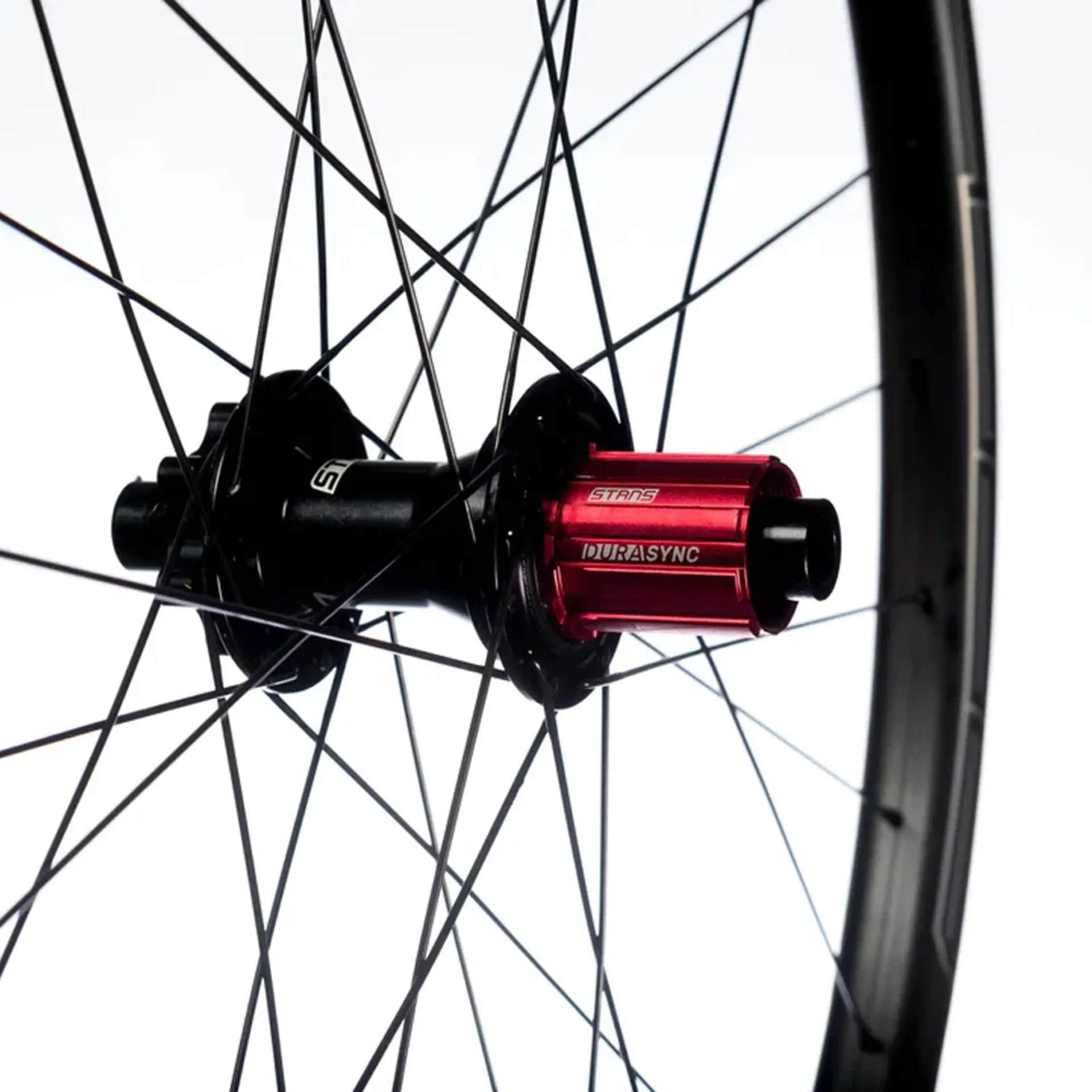

The updated Neo hubs feature a Durasync 6‑pawl freehub with fast 10° engagement and triple freehub bearings for even load distribution. The hub shells are 100% CNC machined and run on a centreless ground axle for smooth long life. Sapim Race 2.0/1.8/2.0 double‑butted spokes, paired with mechanically locking Sure Lock aluminium nipples, keep the wheel light and serviceable. The j‑bend spoke choice means replacements are available at most shops. Wheels come in builds for common axle standards and both Centerlock and 6‑bolt rotor options.

Built and backed:

These rims were developed on the Enduro World Series circuit and finished for everyday riding. Register your wheels and they’re eligible for a 5‑year warranty plus lifetime crash replacement. That’s peace of mind you can feel on the first trail.

What’s included

  • Pre‑installed tubeless tape
  • Presta valves

Key Features:

  • RiACT radial impact absorption - up to 10mm deflection
  • Stan’s Bead Socket Technology for easier, more reliable tubeless setup
  • WideRight rim design optimised for 2.25–2.50” tyres (works great with 2.35")
  • Neo hubs with Durasync 6‑pawl freehub and fast 10° engagement
  • Triple freehub bearings and 100% CNC machined hub shells
  • Sapim Race 2.0/1.8/2.0 double‑butted spokes with mechanically locking Sure Lock aluminium nipples
  • Low‑profile sidewalls for proper tyre shape and reduced rim weight
  • Available in Centerlock and 6‑bolt configurations
  • Eligible for 5‑year warranty and lifetime crash replacement

Ready to ride bolder? The Arch CB7 keeps more traction under you, eats impacts, and gets you back on the gas sooner. Let’s go.

Technical Information
  • Rim Internal Width: 26.0mm
  • Rim Weight: 450g
  • Rim External Width: 32mm
  • Rim Depth: 19.5mm
  • Spokes: Sapim Force Black 2.0/1.8/2.0mm
  • Wheel Weight: 799g
  • Nipples: Sapim Secure Lock Alloy Black
  • ERD: 563mm
  • Hub: Neo with Durasync
  • ETRTO: 584x26
  • Hole Count: 28-hole, 28-hole
  • ISO: 27.5inx32mm
  • Rim Material: Carbon
  • Tape: 25-27mm
  • Hub Colour: Black
  • Max Spoke Tension: 105kgf (1030N)
  • Rim Colour: Black
  • Max Rider Weight: 250lbs (113 kilo)
  • Brakes: Disc Only
  • Max Pressure with 2.20in Tyre: 39psi
  • Max Pressure with 2.50in Tyre: 36psi
  • Valve: 35mm Presta
