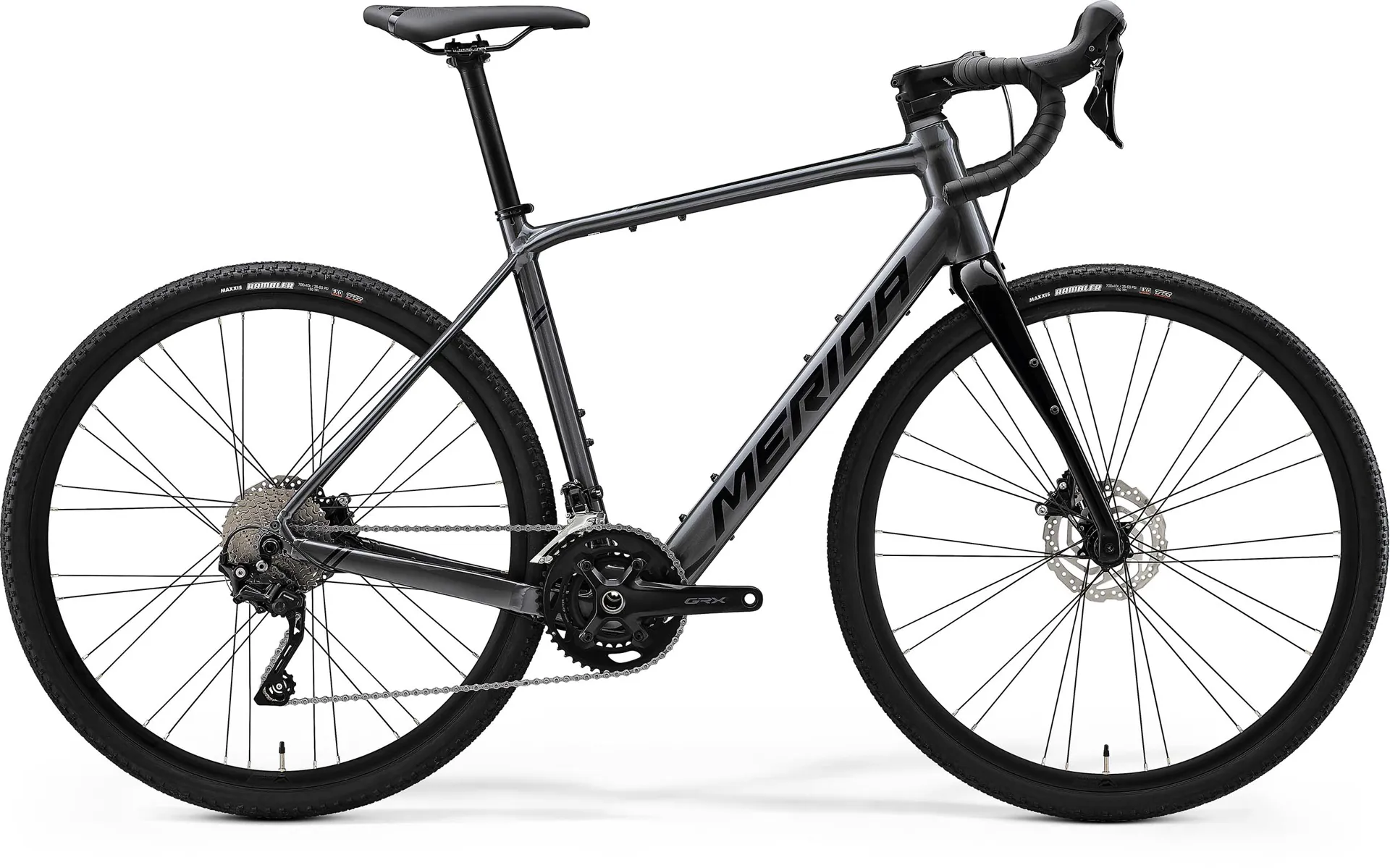

Merida eSilex 400 2023 Electric Road Bike - Dark Silver

Season:2023

Brand:Merida

Code:P-N909

Sometimes you need the freedom to escape. This bike gives you the power to do that, with smooth, natural-feeling hub motor assistance in a sleek off-road capable frame that's home to a 250 Wh battery.

Sometimes a small push is all that's needed to open up a whole new world of exploration. The eSILEX 400 pairs a sleek, lightweight frame with versatile gravel tyres on 700c rims to the helping hand of the MAHLE ebikemotion X35+ hub drive motor and a 250 Wh battery to help expand your riding horizons. A fully-featured frame and carbon fork with plenty of mounts are ideal for overnight bikepacking trips or smaller adventures, while the smooth shifting and powerful braking of the Shimano GRX groupset with double chainset makes for reliable companions, on or off the road

If you are often looking for the off-road alternative when you are out on your bike or simply enjoy exploring the path unknown, then the eSILEX might be the perfect assisted bike for you. The rear-hub MAHLE system with an integrated battery offers a neutral support level whenever your journey requires some e-motor assistance. You can even use an externally mounted 208 Wh MAHLE Range Extender to boost the range. Similarly to the non-assisted SILEX, the eSILEX is available in the more rugged 650b or the more fast-rolling 700c set-up. Both versions come with gravel/off-road tyres for extra grip. A large number of fixing points on the frame as well as the fork, turn the eSILEX into an adventure rig without any fuss.

Merida eSilex 400 2023 Key Features:
  • MAHLE ebikemotion X35+ hub motor gives natural feeling assistance
  • Triple butted aluminium frame with built-in 250 Wh battery
  • Sleek 'normal bike' silhouette and low weight
  • Shimano GRX drivetrain and hydraulic brakes
  • Fast-rolling 700c wheels with gravel tyres
  • Multiple frames and fork fixing points for extra carrying capacity
Technical Information
  • Frame: Lite - Hydroformed 6066 triple-butted aluminium, integrated battery, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards. Max 27.5" x 47c
  • Fork: Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c
  • Headset: VP-MH-P16
  • Stem: Merida Expert IR; aluminium; 31.8mm diameter; 5-degree rise. Stem length: 80mm
  • Handlebar: Merida Expert GR; aluminium; Width: 400mm (XS-S), 420mm (M), 440mm (L/XL)
  • Tape/Grip: Merida Expert
  • Brake Lever: Shimano GRX400
  • Front Brakes: Shimano GRX400; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor
  • Rear Brakes: Shimano GRX400; 2 piston hydraulic disc brake caliper with Shimano RT26; 160 mm rotor
  • Front Derailleur: Shimano GRX400
  • Rear Derailleur: Shimano GRX400
  • Shifters: Shimano GRX400, 10 speed
  • Chain: KMC e10s
  • Crankset: Shimano GRX600; 46-30 tooth chainset with 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL crank
  • Cassette: Shimano CS-HG50 11-36 teeth 10 speed
  • Bottom Bracket: Shimano BSA
  • Rims: Merida Comp SL; 17mm inner rim width; 22mm depth; Aluminium
  • Spokes: Black stainless
  • Front Hub: VP CLK170F; 100x12mm; 32 spokes; Center lock
  • Rear Hub: MAHLE X35+ Hub motor; 40Nm
  • Front Tyre: Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO
  • Rear Tyre: Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO
  • Pedals: VP Components, VPE-891
  • Saddle: Merida Comp CC; V-mount
  • Seatpost: Merida Expert; aluminium; 30.9mm diameter; in-line
  • Motor: MAHLE X35+ Hub Engine 40Nm
  • Battery: MAHLE B1-D 250Wh
  • Charger: MAHLE CHARGER-C 2A charging current

Please Note – Whilst we endeavour to provide up to date information, manufacturers specifications and designs can change without prior notice.
Sizing Information



Geometry
FRAME SIZEXSSMLXL
TYRE SIZES28"28"28"28"28"
ST SEAT TUBE [MM]470490510530560
TT TOP TUBE [MM]525540555570585
CS CHAINSTAY LENGTH [MM]431431431431431
HTA HEAD TUBE ANGLE [°]69.57070.57171.5
STA SEAT TUBE ANGLE [°]7575757575
BD BOTTOM BRACKET DROP [MM]7070707070
HT HEAD TUBE [MM]145160175190205
FL FORK LENGTH [MM]400400400400400
R REACH [MM]374384395406416
S STACK [MM]565581597613629
WB WHEELBASE [MM]10321044105510661076
SH STANDOVER HEIGHT [MM]748767785804830
