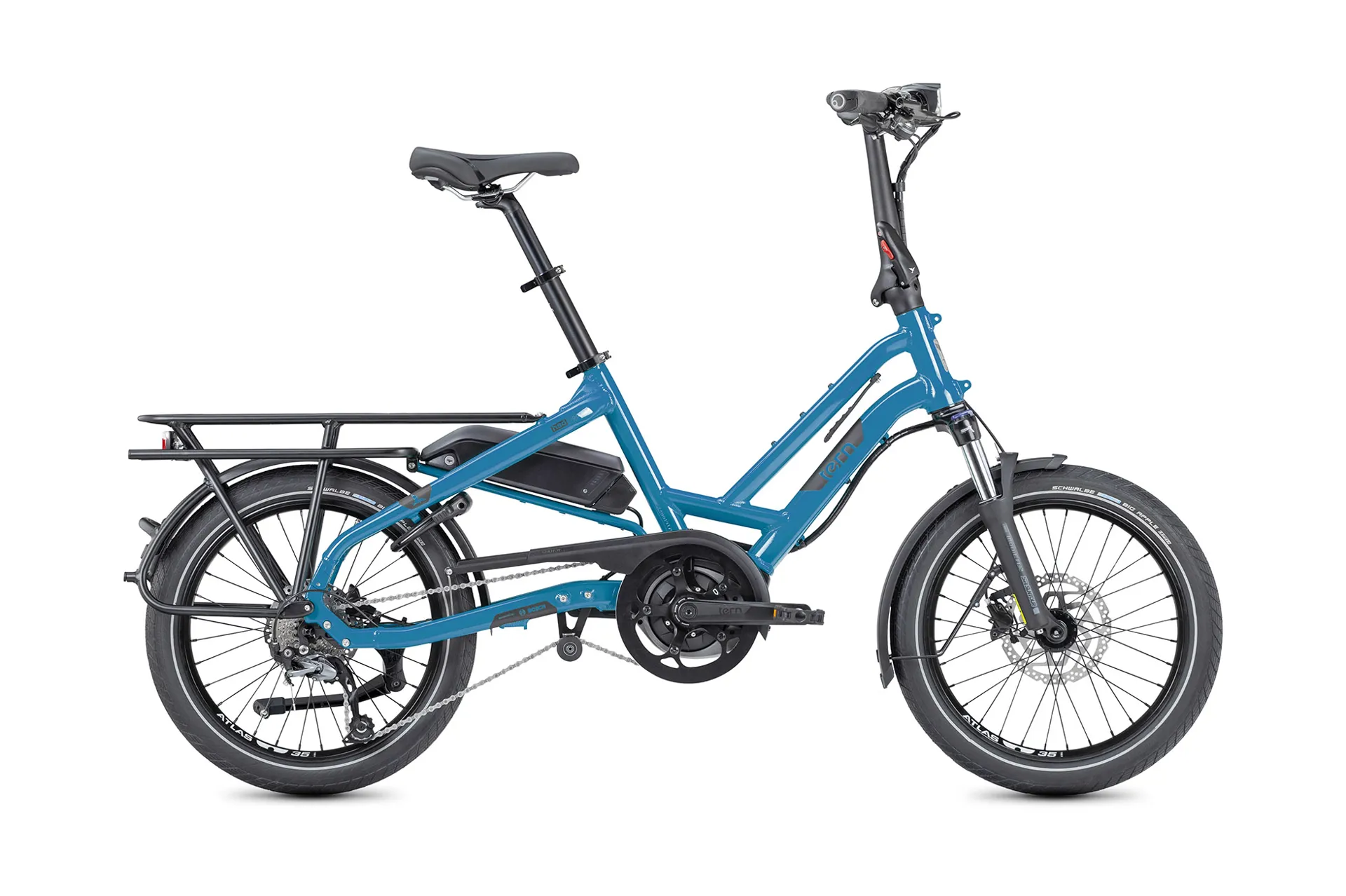

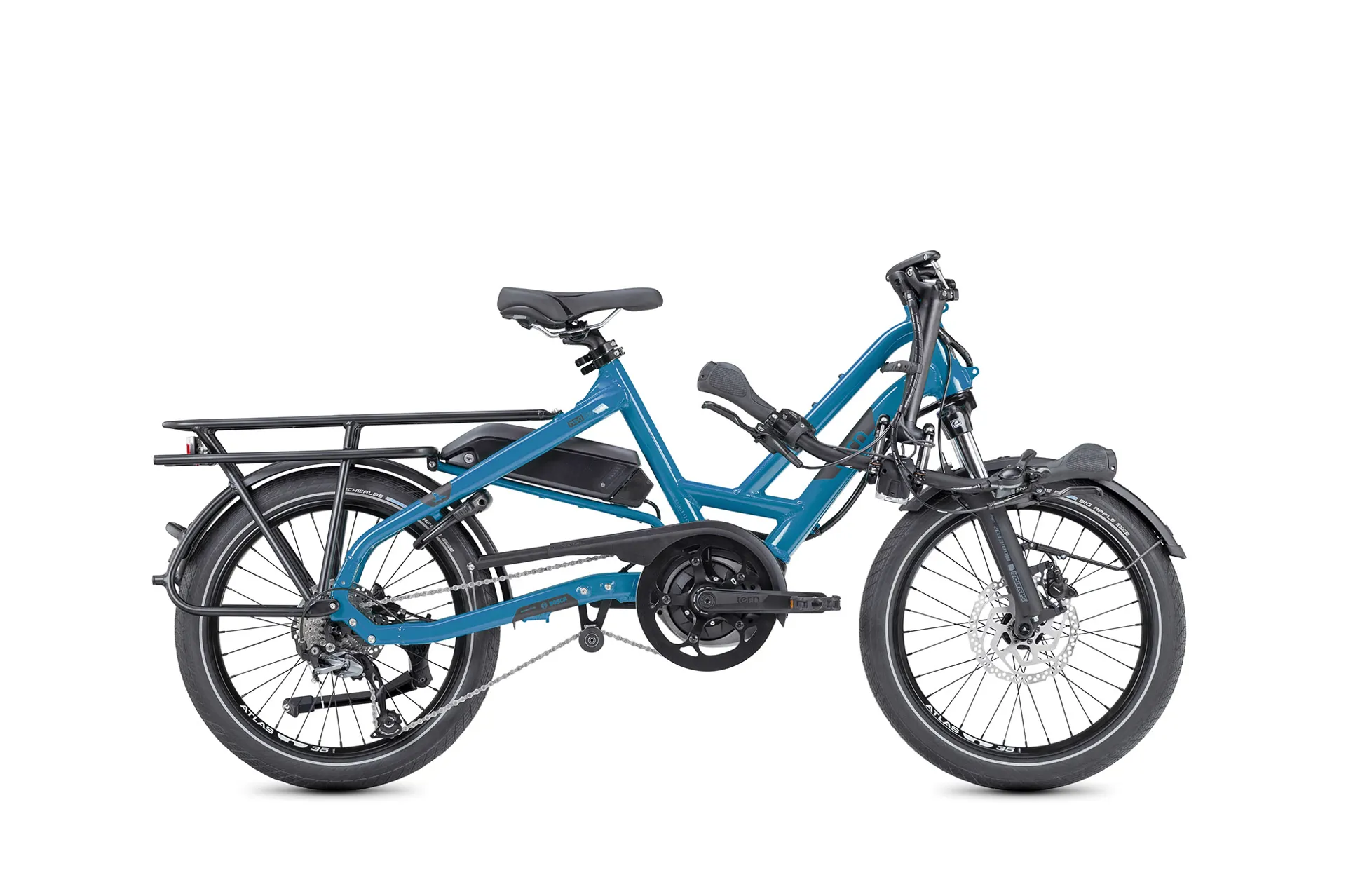

Tern HSD P9 2020 Electric Folding Bike - Blue

Season:2020

Brand:Tern

Code:TERN1940

That meant wiping away pre-conceived notions for things like frame design, riding geometry, and wheel size. The result is the HSD, a small bike that is just much more useful."

Easy to Handle

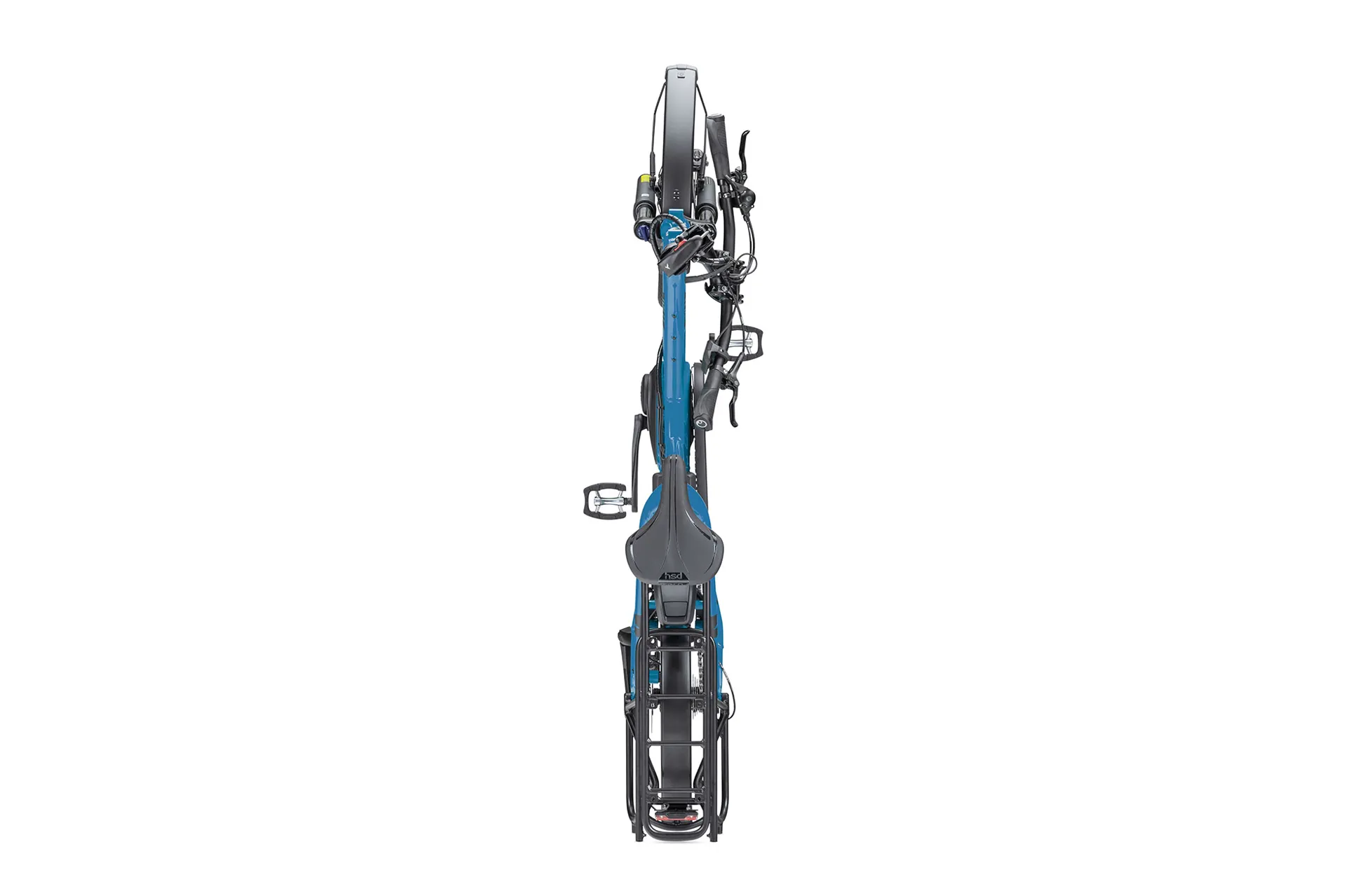

Only 170 cm long, the HSD is shorter than a regular bike. It's a breeze to handle in tight spaces and goes easily where other bikes won't. The HSD flips up for convenient vertical parking and elevator rides, and can be flat-folded in seconds to go into bus racks and SUVs.

Ready to Haul
Despite its diminutive stature, the HSD is a mid-sized cargo bike with serious hauling capacity. With a maximum gross vehicle weight of 170 kg (374 lb) and an XL-sized rack, it'll carry a week's worth of groceries or camping equipment for the weekend. It even has a dedicated trailer hitch mount, so adding extra cargo is a cinch.

The Atlas H Rack is rated to 60 kg (132 lb) and compatible with many different child seat brands, including Thule Yepp and Bobike. An upcoming Passenger Kit will allow riders to continue carrying their kids as they grow older.

Comfier For Everyone
The HSD resizes in seconds to fit riders from 150 to 195 cm (4'11" - 6'5") so everybody in the family—from teens to grandparents—can enjoy the ride. The new Easy-Step frame design offers a comfortable upright riding position for riders tall or small, as well as easy mounts and dismounts. Paired with an adjustable stem and seatpost, a suspension fork, and balloon tires, the HSD delivers a smoother and more comfortable ride even on the meanest cobblestone roads.

Safety-Ready
The HSD gets its genes for strength and durability from the GSD. EFBE Prüftechnik GmbH, one of Europe's leading bicycle test laboratories, has tested the HSD frame and fork to 170 kg (374 lb) according to their own rigorous Tri-Test standard and the upcoming EN Cargo Bike standards. In addition, the HSD is equipped with several safety features that make it ready for almost any situation: integrated front and rear lights, hydraulic disc brakes for all-weather stopping power, puncture-resistant tyres, and even reflective decals.

Powered by Bosch
The HSD is powered by Bosch's next generation Performance Line or Active Line Plus motors. The motors are smooth, silent, and deliver power with a wonderfully natural feeling. And of course every motor and battery system is backed by Bosch's best-in-class warranty and service.

A Whole Lot More
On top of all the standard features mentioned above, different HSD models are also packed with extras like Gates belt drives, Abus keyed-alike frame locks, and Cane Creek Thudbuster suspension seatposts.

Features:
  • WHEEL SIZE: 20" wheels
  • SPEEDS: 1 x 9
  • WEIGHT: 25.7 kg (56.5 lb)
  • FOLDING SIZE: 163 x 40.5 x 86 cm (64" x 15.9" x 34")
  • FOLDING TIME: 5 sec
  • FRAME SIZES: One size
  • GEAR INCHES: 33" - 97" (2.65 - 7.72 m)
  • DISTANCE: SEATPOST TO HANDLEBAR: Min: 490 mm (19.3"); Max: 590 mm (22")
  • DISTANCE: SADDLE TO PEDAL: Min: 490 mm (19.3"); Max: 590 mm (22")
  • SUGGESTED RIDER HEIGHT: 150 - 195 cm (4'11" - 6'5")
  • MAX GROSS VEHICLE WEIGHT: 170 kg (374 lbs)
  • MAX RIDER WEIGHT: 120 kg. (264 lbs.)
Technical Information
Frame
  • Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
  • Fork: Suntour custom for Tern, Chromoly steerer, 32 mm stanchions, Thru-axle, EFBE tested for 170 kg

Cockpit
  • Handlepost: Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem: Tern Andros (G2), adjustable, forged construction, patented technology
  • Headset: Tern Flux, cartridge bearings, Physis integrated
  • Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape: Ergon
  • Saddle: Tern HSD
  • Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
  • Seatpost Clamp: Tern Collar, 6061-AL, 2pc

Brakes
  • Front Brake: Shimano, hydraulic disc, 180 mm rotor
  • Rear Brake: Shimano, hydraulic disc, 180 mm rotor
  • Brake Levers: Shimano, hydraulic disc
  • Brake Cable & Housing: Shimano, hydraulic disc

Wheels
  • Front Wheel:Tern Atlas H, cargo wheel
  • Rear Wheel: Tern Atlas H, cargo wheel
  • Front Hub: Tern Atlas H, cargo wheel
  • Rear Hub: Shimano disc
  • Spokes & Nipples: Stainless steel
  • Rims: Tern Atlas H, wide 35 mm
  • Tires: Schwalbe Big Apple, 55-406, puncture protection, Reflex

Transmission
  • Shifter: Shimano Alivio, 1 x 9 spd, trigger
  • Rear Derailleur: Shimano Alivio Shadow
  • Crankset: Tern HSD custom
  • Cassette/Freewheel: Shimano 11-32T, 9 spd
  • Bottom Bracket: Motor integrated
  • Chain: 9 spd, DHT for eBike, GST corrosion resistant coating
  • Pedals: Urban with non-slip surface
  • Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules

E-System
  • Motor: Bosch Active Line Plus (Gen 3), max speed 25 kph
  • Battery: Bosch PowerPack 400
  • Display: Bosch Purion, 4 mode selectable, walk assist
  • Range: 42 -110 km (26-69 mi)

Bells & Whistles
  • Bell: Aluminum
  • Chainguard: SKS Chainblade
  • Kickstand: Ursus, rear mount
  • Luggage Socket: Combo Mount
  • Front Light: Tern Valo 2.1, 45 lux/190 lumens
  • Rear Light: Herrmans H-Trace, for eBike
  • Fenders: SKS, stainless hardware
  • Rack: Atlas H rack, Atlas Rack Mount, 6 point mounting
  • Accessory: ABUS 5650L, keyed-alike with Bosch battery
