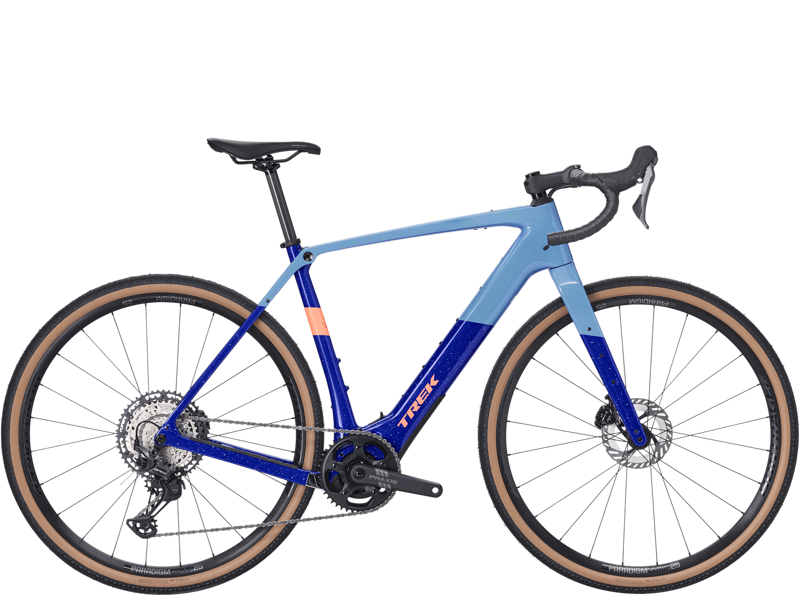

Trek Checkpoint+ SL 5 2026 Electric Gravel Bike - Fjord Blue/Cobalt

Season:2026

Brand:Trek

Code:57446BLU

The Checkpoint+ SL 5 is an electric gravel bike built for long rides and varied terrain. Its carbon OCLV frame with endurance geometry keeps you comfortable over distance while integrated mounts and tidy cable routing let you carry gear without compromising looks or handling.

Electric drive and range focus

A quiet TQ HPR60 mid-motor provides smooth assistance; battery, display and charger are integrated for a compact e-system that supports connected ride data and easy recharging.

Comfort, control and practicality

IsoSpeed compliance, a carbon seatpost and a short, supportive saddle combine with tubeless-ready wheels and wide tyre clearance to absorb rough surfaces. Multiple rack, mudguard and frame-bag mounts make the bike versatile for bikepacking and commuting.

Key Features:

  • E-system: TQ-HPR60 motor 60 Nm, with TQ 360 Wh battery, TQ LED display (Bluetooth & ANT+) and TQ 4A charger
  • Frame & integration: 500 Series OCLV Carbon frame with IsoSpeed, invisible cable routing, integrated chainkeeper, UDH, flat-mount disc brakes and 142x12 mm chamfered thru axle
  • Drivetrain: Shimano GRX RX820 12-speed shifters with RX822 rear derailleur, Praxis alloy crank (length varies by size), Shimano XT 10-51 cassette, 1x up to 44T
  • Wheels & tyres: Bontrager Paradigm Comp 25 tubeless-ready rims, Bontrager Girona Pro 700x42 mm tubeless-ready tyres with TLR sealant; max tyre 50 mm (no mudguards) / 42 mm (with mudguards)
  • Brakes & stopping: Shimano GRX RX820 levers with Shimano CL800 CentreLock rotors (160 mm standard; supports up to 180 mm front/rear)
  • Comfort components: Bontrager carbon 27.2 mm seatpost (8 mm offset), Verse Short Comp saddle (145 mm), Bontrager Elite Gravel handlebars and stems sized to frame
  • Weight & load: ML weight 13.81 kg (with TLR sealant, no tubes); maximum total weight limit 125 kg (275 lb)
  • Practicality & fit: Full carbon fork with rack and mudguard mounts, triple rack mounts on frame, integrated frame-bag mounts, sizes XS–XL available
Technical Information
  • Frame: 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
  • Fork: Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
  • Battery: TQ 360Wh
  • Charger: TQ 4A charger
  • Computer: TQ LED display with Bluetooth & ANT+ connectivity
  • Shifter: Shimano GRX RX820, 12-speed
  • Rear Derailleur: Shimano GRX RX822, 36T max cog
  • Crank: Praxis Alloy, 165/170/172.5mm length
  • Cassette: Shimano XT M8200, 10-51, 12-speed
  • Chain: Shimano XT M8100, 12-speed
  • Wheel Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Skewer Front: Bontrager Switch chamfered thru axle, removable lever
  • Skewer Rear: Bontrager Switch chamfered thru axle, removable lever
  • Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre Part: Bontrager TLR sealant, 180 ml/6 oz
  • Saddle: Verse Short Comp, steel rails, 145 mm width
  • Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar: Bontrager Elite Gravel, alloy, 40/42/44/46cm width
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70/80/90/100mm length
  • Brake Rotor: Shimano CL800, CentreLock, 160 mm
  • Brake Lever: Shimano GRX RX820, 12-speed

Please Note – Whilst we endeavour to provide up-to-date information, manufacturer specifications and designs can change without prior notice.
Sizing Information
SizeRider HeightInseam
XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S (49cm)

158 - 164 cm

5'2" - 5'5"

74 - 77 cm

29" - 30"

M (52-54cm)

164 - 177 cm

5'5" - 5'10"

77 - 83 cm

30" - 33"

ML (56cm)

177 - 188 cm

5'10" - 6'2"

83 - 88 cm

33" - 35"

L (58cm)

188 - 194 cm

6'2" - 6'4"

88 - 91 cm

35" - 36"

XL (61cm)

194 - 203 cm

6'4" - 6'8"

91 - 95 cm

36" - 37"
