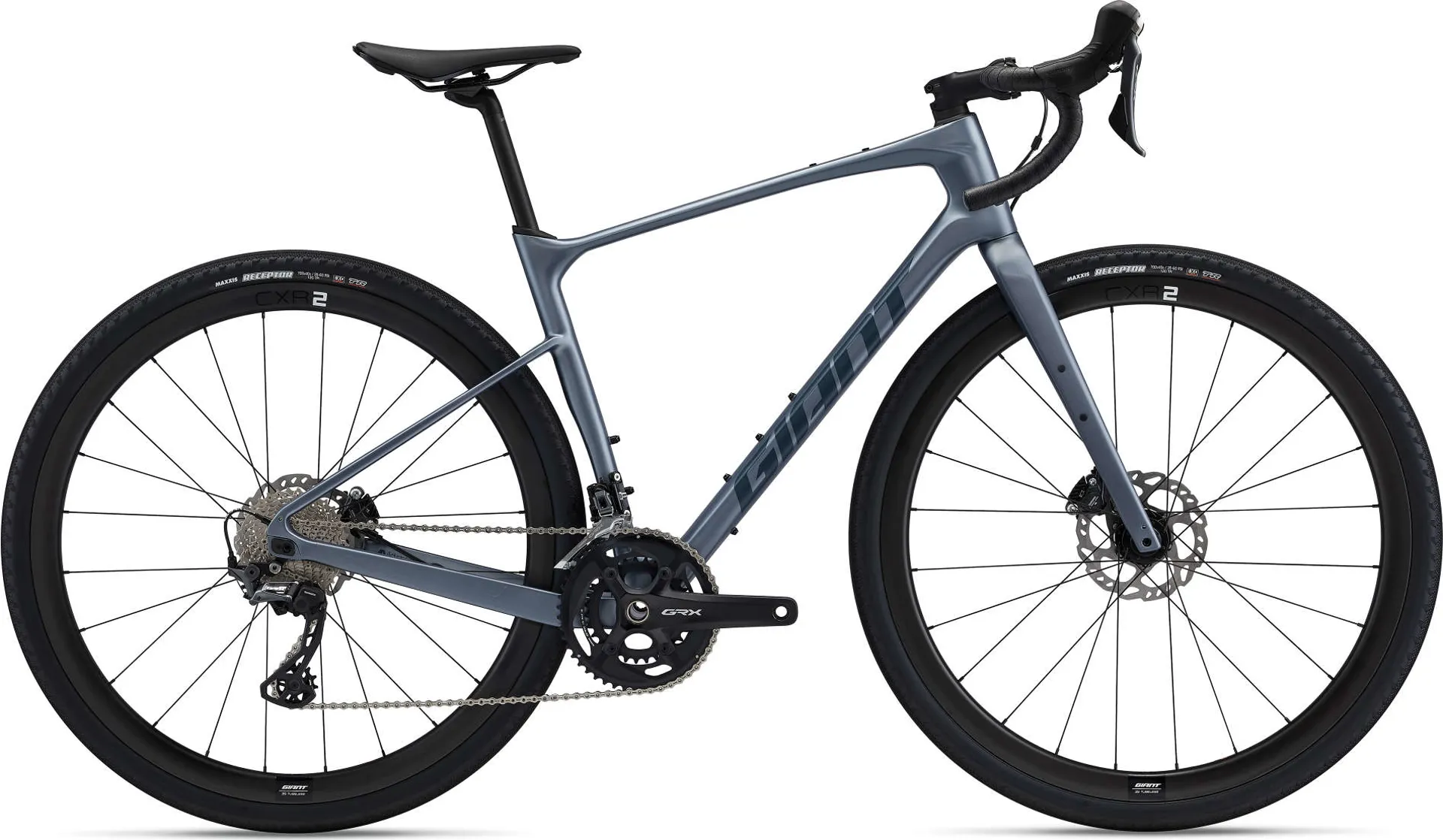

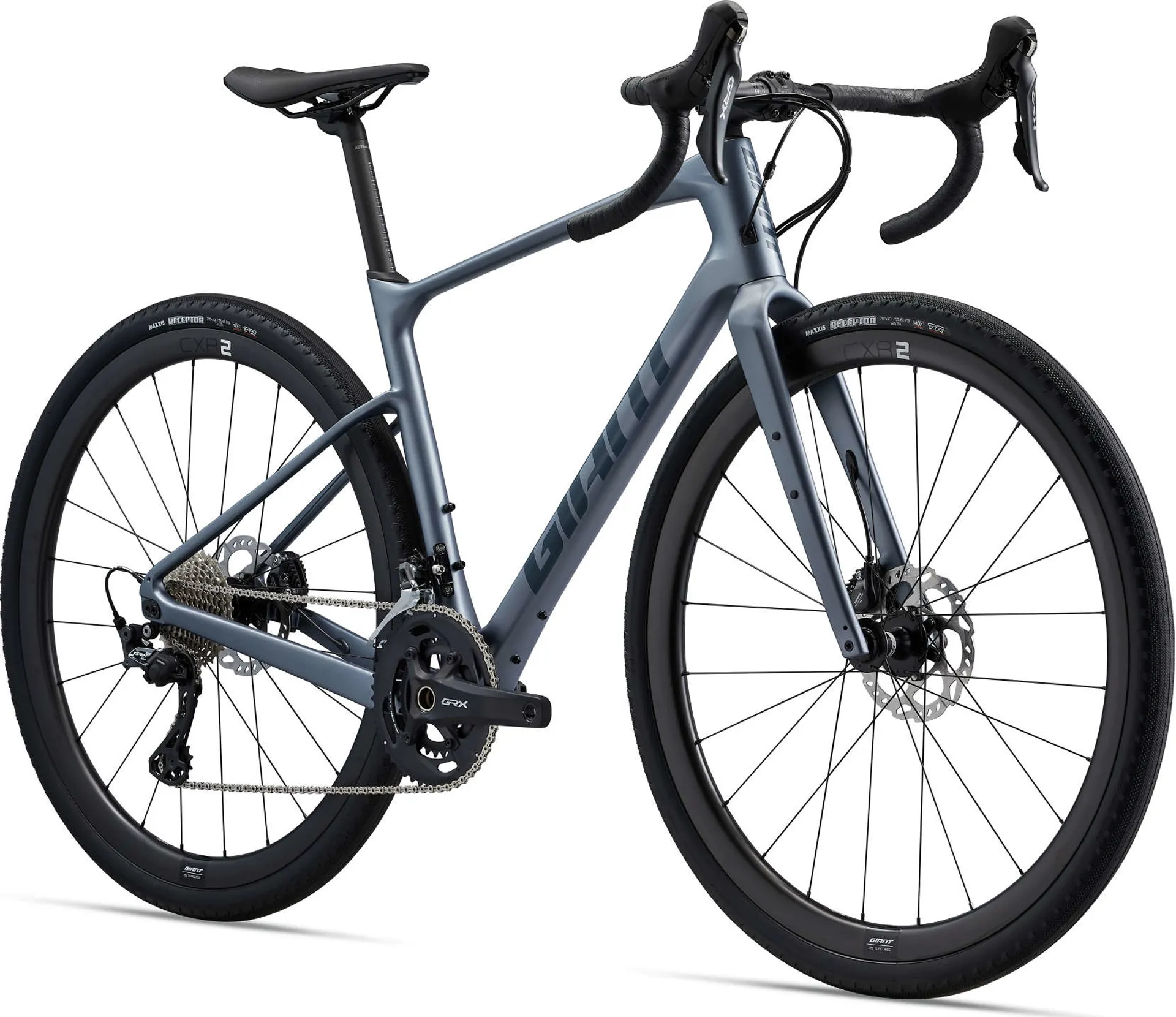

Giant Revolt Advanced 0 2022 Carbon Gravel Road Bike - Knight Shield

Season:2022

Brand:Giant

Code:2212008KnightShield

FAST GRAVEL, ROUGH GRAVEL, PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

Key Performance Factors:

Fast and light
New Advanced composite frame and fork save more than 160 grams compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.

Tuned compliance
The new frame features thinner, dropped seat stays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip-chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Giant Revolt Advanced 0 2022 Key Features:
  • Advanced-Grade Composite frame
  • Advanced-Grade Composite fork
  • Shimano GRX RX-810, 2x11
  • Shimano GRX RX-810 hydraulic brakes
  • Giant CXR 2 Carbon Disc WheelSystem
Technical Information
  • Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip-chip dropout
  • Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar: Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips: Stratus Lite 3.0
  • Stem: Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seat Post: Giant D-Fuse, composite, 14mm offset
  • Saddle: Giant Approach
  • Shifters: Shimano GRX RX-810, 2x11
  • Front Derailleur: Shimano GRX RX-810

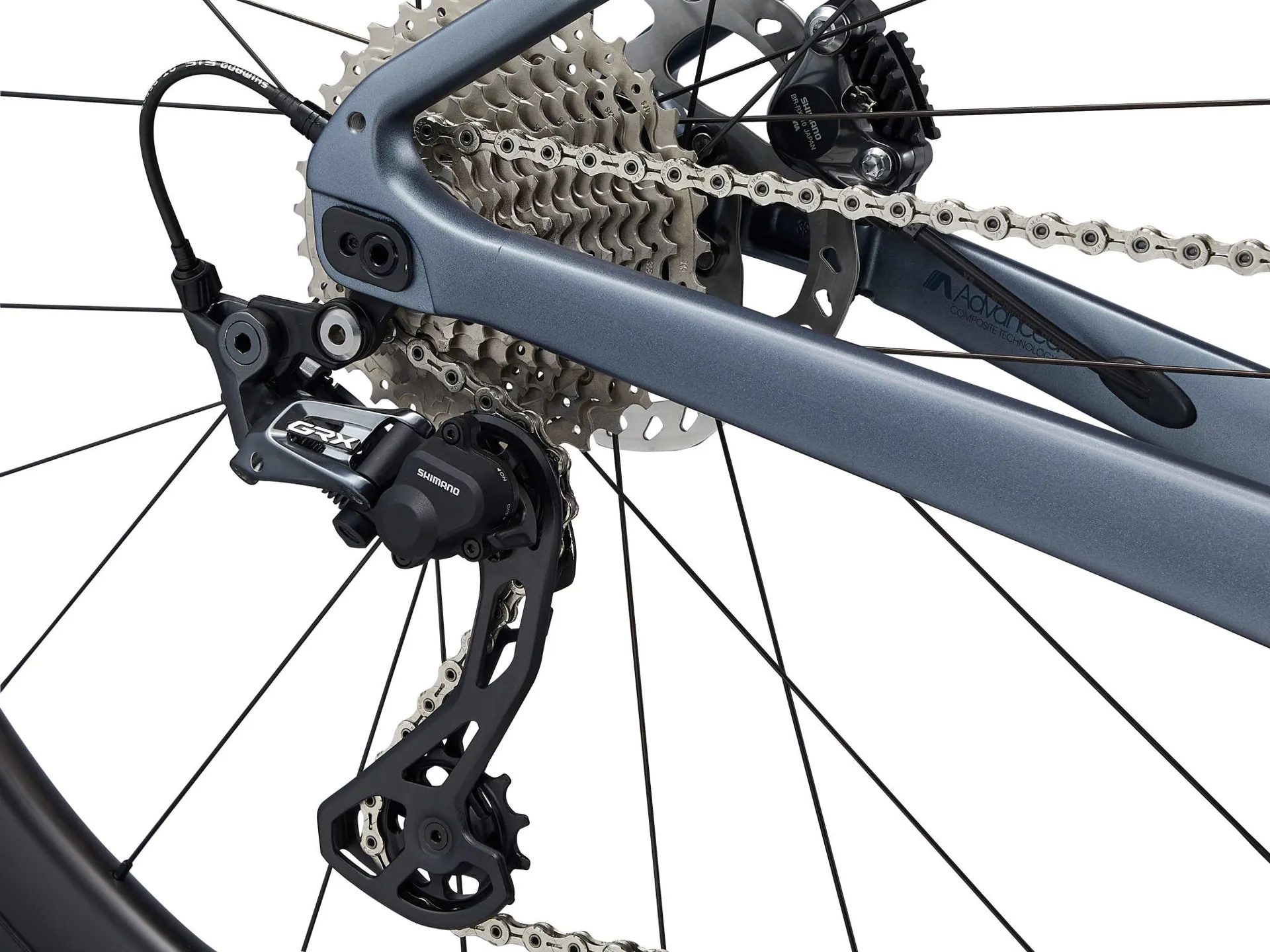

  • Rear Derailleur: Shimano GRX RX-810 Max 34T
  • Brakes: Shimano GRX RX-810 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
  • Brake Levers: Shimano GRX RX-810 hydraulic
  • Cassette: Shimano CS-HG800, 11-speed, 11x34
  • Chain: KMC X11SL-1
  • Crankset: Shimano GRX RX-810, 31/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket: Shimano, press-fit
  • Rims: Giant CXR 2 Carbon Disc WheelSystem, 25mm inner rim width
  • Hubs: Giant CXR 2 Carbon Disc WheelSystem
  • Spokes: Giant CXR 2 Carbon Disc WheelSystem
  • Tyres: Maxxis Receptor, 700x40c, tubeless
  • Extras: Factory tubeless set up, 53mm max tyre size in "long" flip-chip position, 42mm max tyre size in "short" flip-chip position

Please Note – Whilst we endeavour to provide up to date information, manufacturers specifications and designs can change without prior notice.
Sizing Information
Small5'3" - 5'7"
Medium5'7" - 5'11"
Medium/Large5'9" - 6'1"
Large5'10" - 6'3"
X-Large6'2" - 6'7"



GeometrySMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASEAT TUBE LENGTH(inch)17.718.519.320.120.9
BSEAT TUBE ANGLE73.5°73.5°73.0°73.0°73.0°
CTOP TUBE LENGTH(inch)21.72222.62323.6
DHEAD TUBE LENGTH(inch)5.35.96.57.17.7
EHEAD TUBE ANGLE71.0°71.5°72.0°72.0°72.0°
FFORK RAKE(inch)22222
GTRAIL(inch)2.8|32.7|2.82.6|2.72.6|2.72.6|2.7
HWHEELBASE(inch)40.2|40.640.4|40.840.6|4141|41.441.6|42
ICHAIN STAY LENGTH(inch)16.7|17.116.7|17.116.7|17.116.7|17.116.7|17.1
JBOTTOM BRACKET DROP(inch)3.1|3.23.1|3.23.1|3.23.1|3.23.1|3.2
KSTACK(inch)22.423.123.724.324.8
LREACH(inch)1515.215.415.616
MSTAND OVER HEIGHT(inch)29.1|29.429.8|30.130.5|30.731.1|31.431.8|32
NHANDLEBAR WIDTH(inch)16.517.317.318.118.1
OSTEM LENGTH(inch)2.42.83.13.13.5
PCRANK LENGTH(inch)6.76.86.86.96.9
QWHEEL SIZE700C700C700C700C700C
