Stans

Stans NoTubes Arch MK4 Centerlock 27.5 Rear MTB Wheel - SRAM XDR

£620.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Warranty

Cycle Solutions offer a full 18-month warranty on bikes purchased through our online shop, in line with the guidance set out in the Consumer Rights Acts 2015.

In the unfortunate event of your purchase being affected by a warranty-covered fault, please inform us by email ([email protected]). Please note that our Aftersales Department's operating hours are 09:00AM to 17:30PM Monday to Friday.

Once a warranty claim has been placed we will review the claim and advise on an appropriate course of action, please do not return your item until you have spoken to an advisor.

Please allow a minimum of 15 working days from receipt of returned item(s) for repair/replacement under warranty. We expect to be able to return the items within a maximum 30 working days, however, specific timescales can change based on the requirements of the individual case.

Most bikes and accessories are covered by a standard manufacturer's warranty but please be aware that there are faults/issues that are NOT covered by your warranty. This includes;

  • Any normal wear and tear from using the product
  • Improperly installed or repaired products (always follow the instruction guides for any product set-up or installation)
  • Modifications to products
  • Stripped pedal threads - a comprehensive guide on the correct installation of pedals is sent out with every bike
  • E-bike batteries and associated componentry

Returns

We operate a 365-day return policy so that if you change your mind, the unused items can be returned to us so that you can purchase with complete peace of mind.

Once you have spoken to our aftersales department, you may need to return the item, you can arrange this via any courier/delivery service that you choose.

Please contact us in advance if you wish to return a bike

If a bike needs to be returned due to an incorrect size being ordered, or the item is no longer wanted or ordered in error, then collection can be arranged at a cost of £40.00. If you do not wish to use our collection service then any alternative return method will need to be arranged at your own cost.

Any Other Returns

Before sending your item back, please download and complete our returns form, completing all relevant sections and including this with your return - if your item is returned without the form included it can take significantly longer to correctly process the item and review the issue.

Returns Form

Item/s must be returned in the original packaging (in a resaleable condition), unused and unopened within 14-days of notification to cancel.

If Collect+ is not being used, then proof of postage will be required as Cycle Solutions is unable to accept liability for loss or damage whilst in transit back to us.


Additional non-returnable items:

· Any products that due to hygiene reasons, cannot be returned. This includes all undergarments (including socks) as well as padded shorts,bibshorts, tights, etc

· Downloadable software products

· Some health and personal care items

· CD/DVD's or software that have been opened

· Any Food or drink products that, upon return, will be within 3 months of the sell-by date

· Gift cards

· Customised bike orders

Your refund will be done with 30 days of receipt of returned goods and will not be done until the goods are received and inspected.

Please do not send your purchase back to the manufacturer.

Returning a product under the WEEE Regulations.

What do the WEEE regulations mean?

WEEE (The Waste Electrical and electronic Equipment) Directive is UK law that governs the disposal and recycling of all electrical items. The law, introduced in 2014, puts the emphasis on the producers and suppliers of electrical equipment to pay for the collection, treatment and recovery of waste electricals.

As a retailer that sells new Electrical and Electronic products we will take back old items, provided it is a like-for-like replacement when you buy a new product from us. We will then responsibly dispose of the old product ensuring that it doesn’t end up in landfill.

Old products must be returned directly to our shop or head office (details below) within 28 days of your new purchase, clearly marked as WEEE.

Cycle Solutions Head Office
6 Europa way
Fforestfach
Swansea
SA5 4AJ

Disposing of equipment yourself

If you choose not to send your equipment back to us for disposal then you can dispose of any electricals or electronics yourself at your local recycling centre, who will dispose of your equipment via a controlled recycling process.

You can locate your closest collection site by entering your postcode at www.recycle-more.co.uk

What products fall under WEEE Regulations?

As part of the WEEE regulations, all electrical and electronic goods produced after August 2005 that fall under WEEE regulations should be clearly marked with a crossed-out bin symbol which means they should not be included with household waste so that they can be recycled

As a responsible retailer we take all steps possible to ensure that our business meets all requirements of any EU & UK consumer protection laws, particularly the Consumer Contracts (Information, Cancellation & Additional Charges) Regulations 2013 and other legislation specific to the products that we sell.

If you have any concerns or questions regarding this process, please contact us at [email protected].

Warranty

Uprise offer a full 18-month warranty on bikes purchased through our online shop, in line with the guidance set out in the Consumer Rights Acts 2015.

In the unfortunate event of your purchase being affected by a warranty-covered fault, please inform us by email ([email protected]).

Please note that our Aftersales Department's operating hours are 08:30AM to 17:30PM Monday to Friday.

Once a warranty claim has been placed, we will review the claim and advise on an appropriate course of action, please do not return your item until you have spoken to an advisor.

Please allow a minimum of 15 working days from receipt of returned item(s) for repair/replacement under warranty. We expect to be able to return the items within a maximum 30 working days, however, specific timescales can change based on the requirements of the individual case.

Most bikes and accessories are covered by a standard manufacturer's warranty but please be aware that there are faults/issues that are NOT covered by your warranty. This includes.

  • Any normal wear and tear from using the product.
  • Improperly installed or repaired products (always follow the instruction guides for any product set-up or installation)
  • Modifications to products
  • Stripped pedal threads - a comprehensive guide on the correct installation of pedals is sent out with every bike.
  • E-bike batteries and associated componentry

Returns

We operate a 365-day return policy so that you can purchase with complete peace of mind.

Once you have spoken to our aftersales department, you may need to return the item, you can arrange this via any courier/delivery service that you choose.

Bikes

Please contact us in advance if you wish to return a bike as Collect+ will not accept large items

If a bike needs to be returned due to an incorrect size being ordered, or the item is no longer wanted or ordered in error, then collection can be arranged at a cost of £40.00. If you do not wish to use our collection service then any alternative return method will need to be arranged at your own cost.

Any Other Returns

Before sending your item back, please download and complete our returns form, completing all relevant sections and including this with your return - if your item is returned without the form included it can take significantly longer to correctly process the item and review the issue..

Returns Form

Item/s must be returned in the original packaging (in a resaleable condition), unused and unopened within 14-days of notification to cancel.

If Collect+ is not being used, then proof of postage will be required as Cycle Solutions is unable to accept liability for loss or damage whilst in transit back to us.


Additional non-returnable items:

Any products that due to hygiene reasons, cannot be returned. This includes all undergarments (including socks) as well as padded shorts, bibshorts, tights, etc

• Downloadable software products

• Some health and personal care items

• CD/DVD's or software that have been opened

• Any Food or drink products that, upon return, will be within 3 months of the sell-by date

• Gift cards

• Customised bike orders

Your refund will be done with 30 days of receipt of returned goods and will not be done until the goods are received and inspected.

Please do not send your purchase back to the manufacturer.

Returning a product under the WEEE Regulations.

What do the WEEE regulations mean?

WEEE (The Waste Electrical and electronic Equipment) Directive is UK law that governs the disposal and recycling of all electrical items. The law, introduced in 2014, puts the emphasis on the producers and suppliers of electrical equipment to pay for the collection, treatment and recovery of waste electricals.

As a retailer that sells new Electrical and Electronic products we will take back old items, provided it is a like-for-like replacement when you buy a new product from us. We will then responsibly dispose of the old product ensuring that it doesn't end up in landfill.

Old products must be returned directly to our shop or head office (details below) within 28 days of your new purchase, clearly marked as WEEE.

Uprise Bikes

6 Europa way

Fforestfach

Swansea

SA5 4AJ

Disposing of equipment yourself

If you choose not to send your equipment back to us for disposal then you can dispose of any electricals or electronics yourself at your local recycling centre, who will dispose of your equipment via a controlled recycling process.

You can locate your closest collection site by entering your postcode at www.recycle-more.co.uk

What products fall under WEEE Regulations?

As part of the WEEE regulations, all electrical and electronic goods produced after August 2005 that fall under WEEE regulations should be clearly marked with a crossed-out bin symbol which means they should not be included with household waste so that they can be recycled

As a responsible retailer we take all steps possible to ensure that our business meets all requirements of any EU & UK consumer protection laws, particularly the Consumer Contracts (Information, Cancellation & Additional Charges) Regulations 2013 and other legislation specific to the products that we sell.

If you have any concerns or questions regarding this process, please contact us at [email protected].

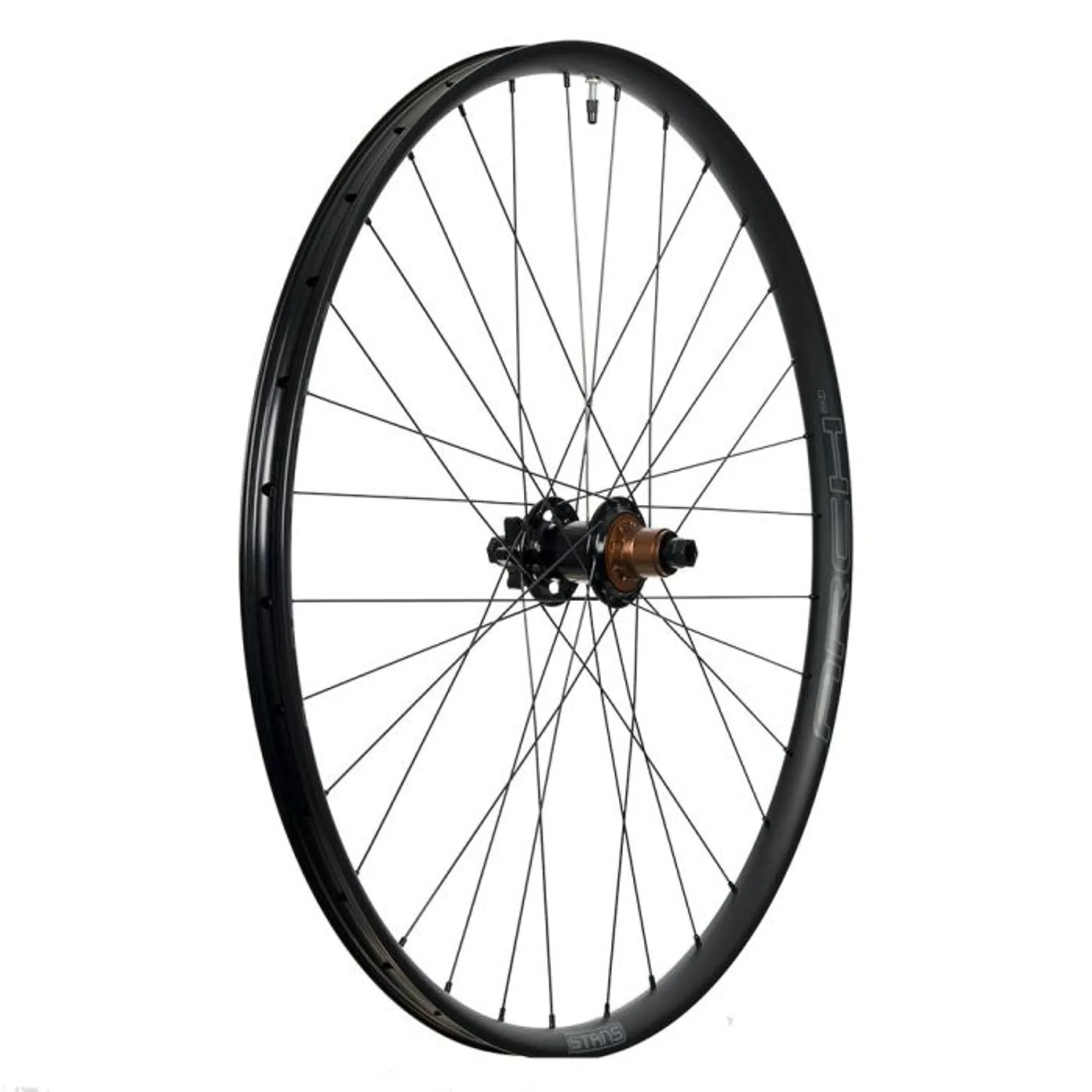

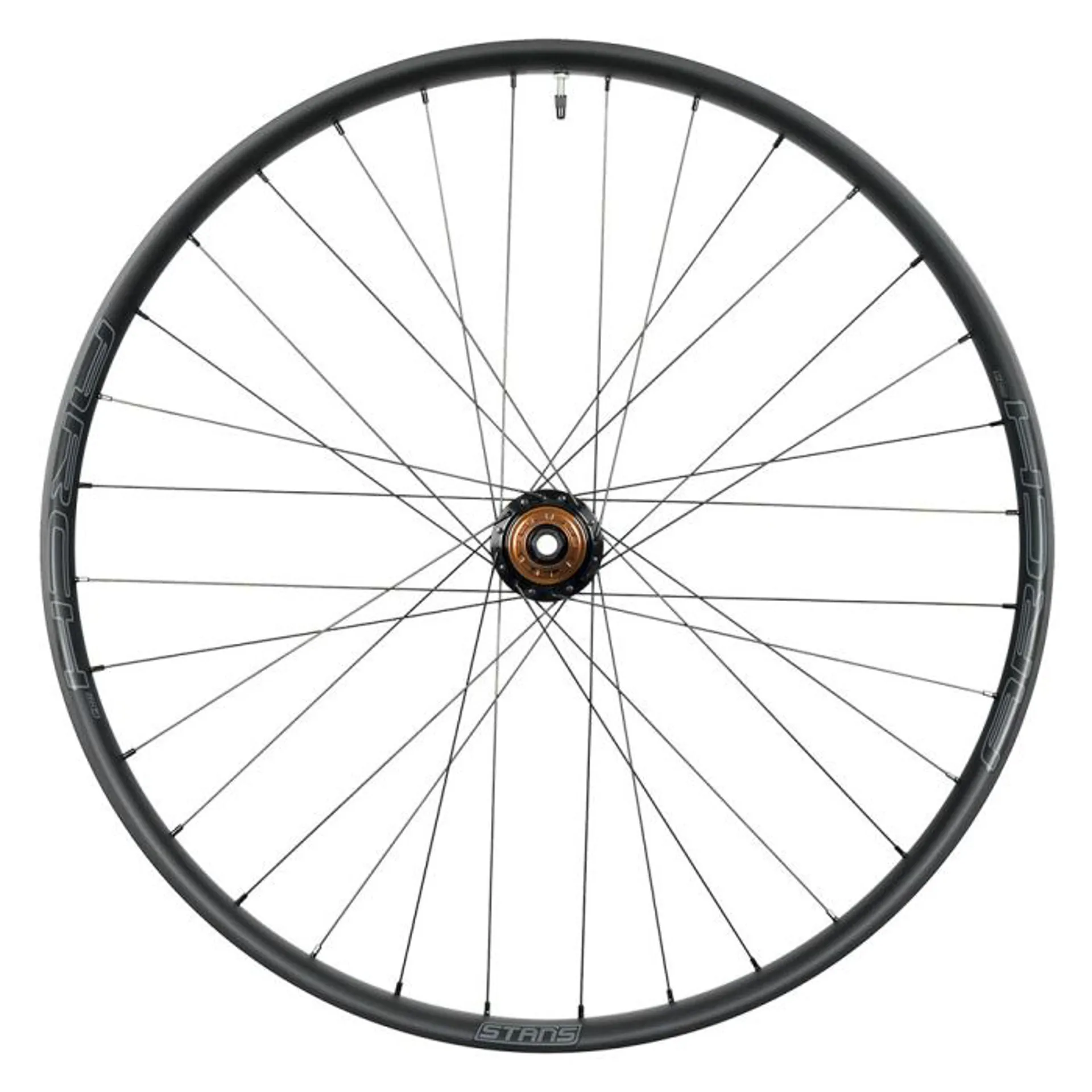

Stans NoTubes Arch MK4 Centerlock 27.5 Rear MTB Wheel - SRAM XDR

Season:2022

Brand:Stans

Code:STANS138GRY

The Arch MK4 is the wheelset a lot of us here at Stan's choose to ride. All-mountain, Downcountry, Trailduro—whatever they're calling it this week when you like pushing your limits on climbs, descents, and every kind of trail, this is your wheelset.

The Arch MK4's 28mm internal width and patented lightweight, low-profile design is not afraid to climb while being an absolute monster on the descents. With a welded seam, reinforced spoke bed, and durable 6069 aluminium construction, the Arch MK4 rims give you the confidence to ride everything. When it comes to a consistent and reliable airtight tubeless seal, nothing beats Stan's patented Bead Socket Technology. The Arch MK4 rims feature an asymmetric design with offset spoke holes to improve the spoke angle and create a stronger all-around wheel. Unlike most asymmetric rims that suffer from difficult inflation and poor tubeless performance, Stan's BST-Asymmetric design delivers all the advantages of a stronger wheel, with no compromises in tubeless performance. Nobody likes downtime, so the Arch MK4 wheelset is built with traditional J-bend spokes based on their proven strength, ride quality, and easy serviceability. Stan's has always made it easy to find replacement spokes should you ever damage your wheel, and now we've made it even easier. MK4 front and rear wheels of the same diameter all use the exact same very common spoke length, both sides, front and rear. Serviceability doesn't get any easier than that.

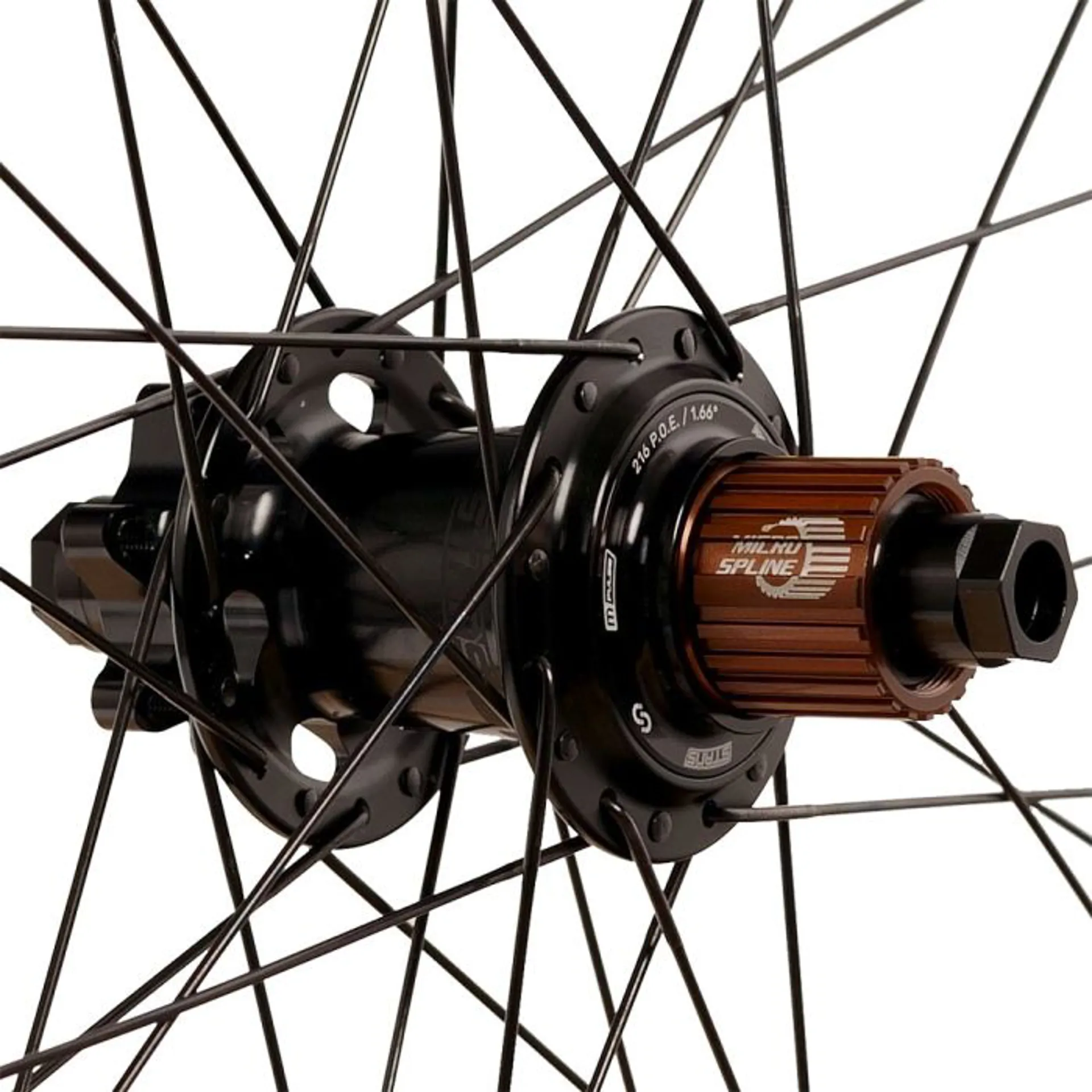

From the first click of the incredible M-pulse hubs, it's clear that confidence is the philosophy behind every part of this wheelset. Designed and CNC machined by Project321 in Bend, Oregon, M-pulse freehubs feature 6 pawls with Neodymium magnets that lock into place with greater force than conventional pawl springs but offer virtually no resistance when coasting. Multiple teeth on each pawl offer better load distribution for years of trouble-free riding, and the angle of the pawls was engineered to transfer stress away from the rotating bearings, decreasing stress and wear on the entire freehub. That durability extends to the 17mm axles machined of 7075 aluminium and the full complement of Enduro brand bearings, including a double-row freehub bearing. M-pulse internals is also fully shielded inside the hub because the only thing better than a good bearing seal is a good bearing seal most dirt can't even reach. As durable as they are, these hubs are also built for speed. M-pulse hubs engage with only 1.66°of rotation, putting down power nearly instantaneously, but how smooth these hubs roll is what really stands out. Adjustable preload allows you to fine-tune M-pulse hubs for reduced friction, and less drag means more speed on the ground. The result is a bombproof hub with quick, consistent engagement and less resistance for more speed.

Key Features:
  • Versatile 28mm internal rim width optimized for 2.2-2.5” tires

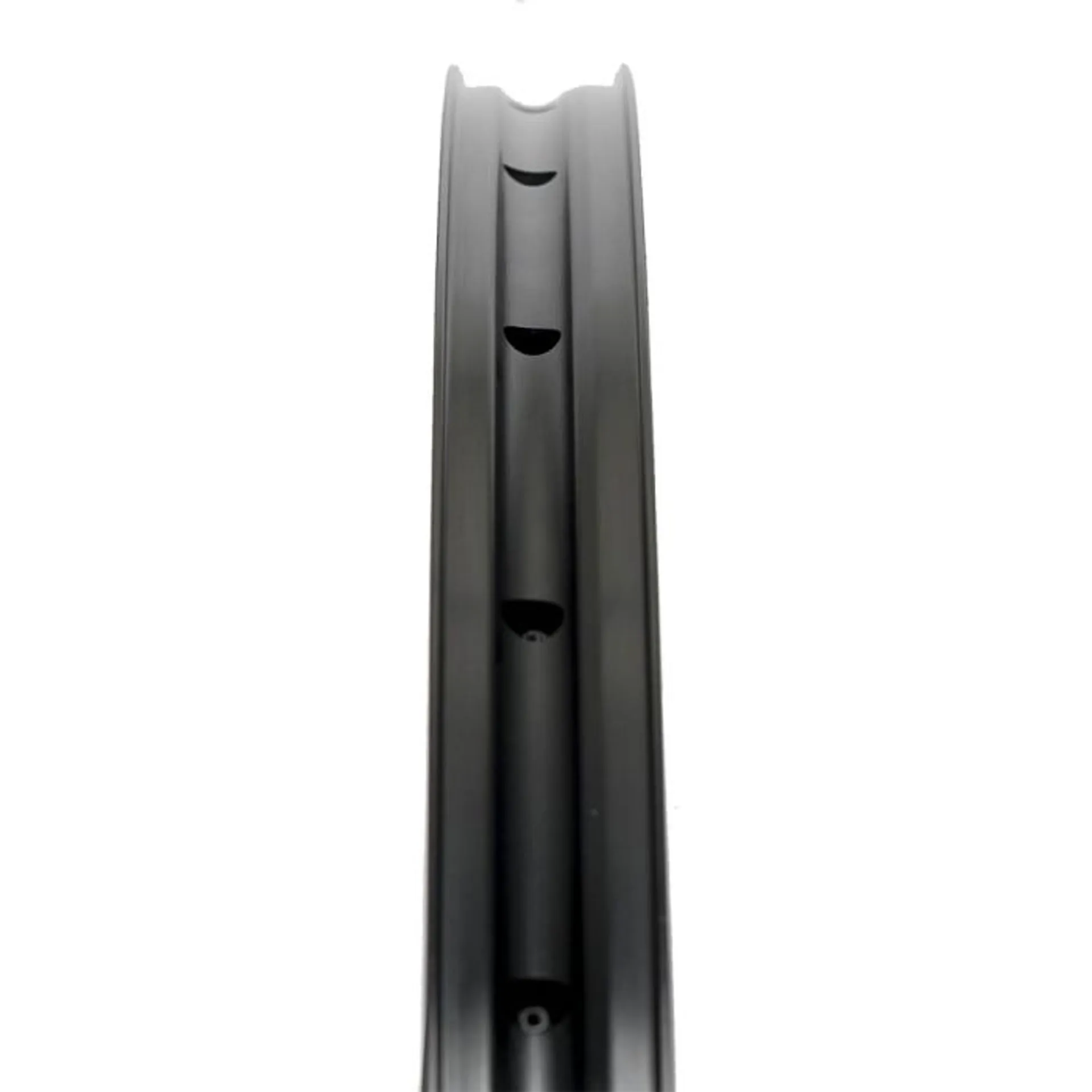

  • Light and durable 6069 aluminium with a welded joint and reinforced spoke bed
  • The BST-Asymmetric design combines Stan’s legendary easy tubeless inflation with a stronger, more balanced wheel build
  • M-pulse ultra-low drag magnetic pawl adjustable hubs with 1.66° engagement
  • Enduro bearings with double-row freehub bearing
  • Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy serviceability
Technical Information

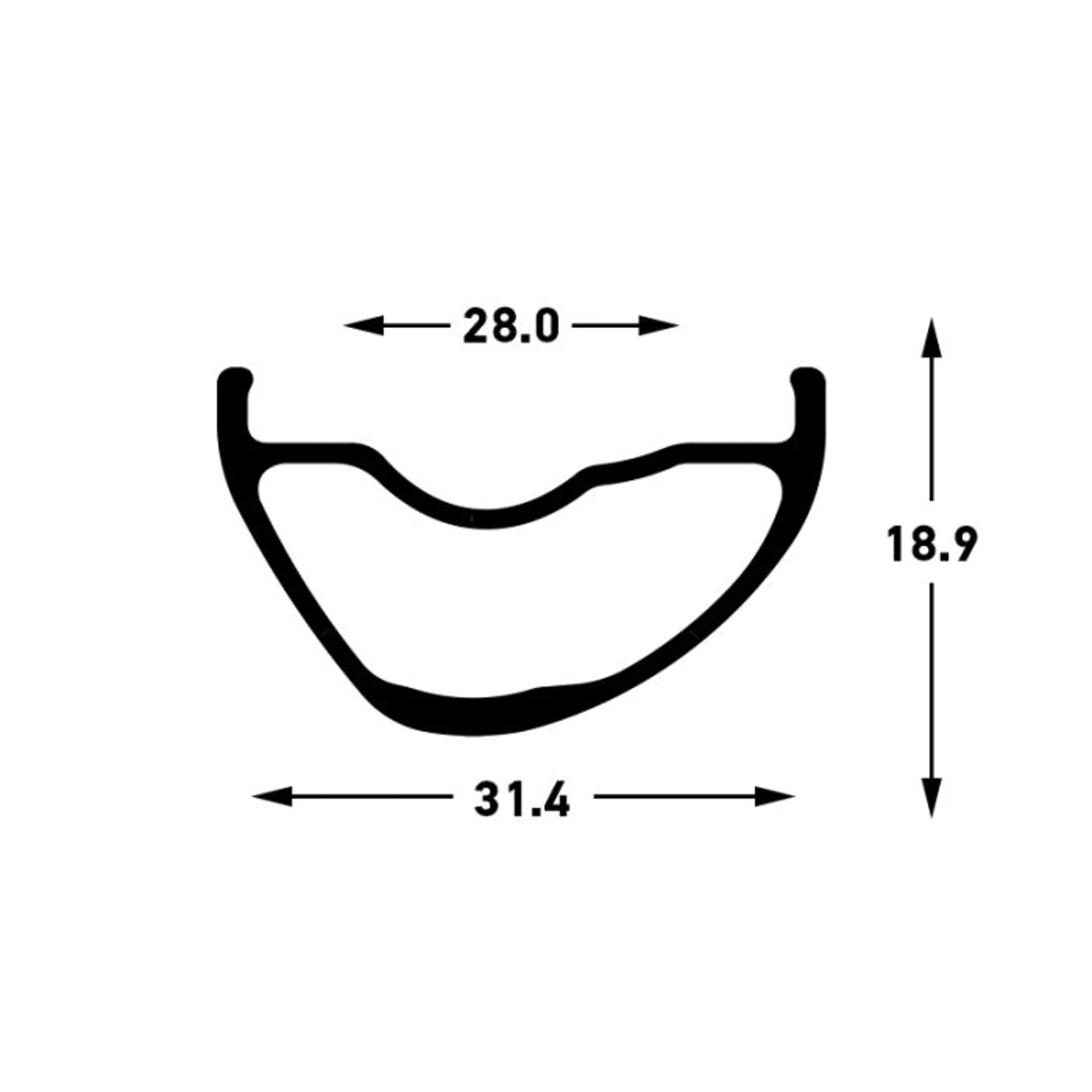

  • Rim Internal Width: 28.0mm
  • Rim External Width: 31.4mm
  • Rim Depth: 18.9mm
  • Spokes: Sapim D-Light 2.0/1.65/2.0
  • Nipples: Sapim Double Square Alloy Black
  • Hub: M-pulse
  • Hole Count: 32-hole
  • Rim Material: 6069 Aluminum Alloy
  • Brakes: Disc
  • Valve: Presta
  • Rim Weight: 451g
  • Rear Wheel Weight: 925g
  • ERD: 561mm, 2.5mm Offset mm
  • ETRTO: 584x28.0
  • ISO: 27.5"x31.4mm
  • Tape: 30mm
  • Max Spoke Tension: 130kgf (1275N)
  • Max Rider Weight: 230lbs (104 kilos)
  • Max Pressure with 2.20" Tire: 41psi
  • Max Pressure with 2.50" Tire: 35psi
